*Fits all 2016 through 2019 ATS-Vs*
COOL YOUR ATS-V IN THE HARSHEST CONDITIONS
From road course to drag strip and stretching its legs on a cross-country road trip, the ATS-V has the power, handling, braking, and comfort to handle anything you can throw at it. That is until you notice the temp gauge climbing when the stock cooling system is overwhelmed by any aggressive driving or power upgrades. If you really like to push your engine hard, you may encounter additional heat soak with the stock system causing reduced engine performance. Adding a high-performance three-part system with the auxiliary radiator and two additional heat exchangers provides extra capacity and cooling efficiency that will keep overheating issues at bay during extended rpm use.
BUILT FOR OPTIMUM EFFICIENCY
The 1.5-inch-wide core tubes are sandwiched between our serpentine cooling fins for maximum heat transfer. The cores are sized to provide maximum surface area while fitting within the confines of the factory duct assembly. The additional core area not only offers more surface area for cooling but provides an increase in coolant capacity as well.
|

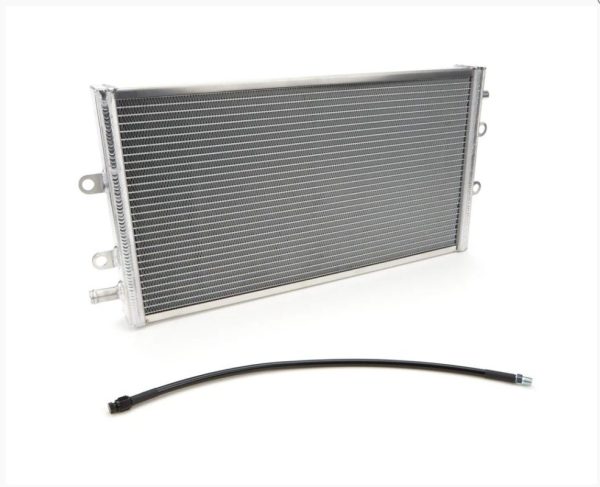

ATS-V Center Heat Exchanger |
|
|
Radiator Style: |
Single Pass |
|
Flow Direction:
|
Cross Flow
|
|
Material Type: |
Aluminum |
|
Inlet Location: |
Passenger side end tank |
|
Outlet Location: |
Driver side end tank |
|
Row Quantity: |
31 |
|
Tube Size: |
1.5” |
|
Core Width: |
21.5” |
|
Core Height: |
12.38” |
|
Overall Width: |
26” |
|
Core Thickness: |
1.5” |
|
Overall Thickness: |
2.25” |
|
Overall Height: |
12.5” |
|
Finish:
|
Natural
|
|
Inlet Size:
|
3/4” Push on
|
|
Outlet Size:
|
GM Factory Connection
|
