Carlyle Racing 15″ Rear Brakes Conversion Kit

Description

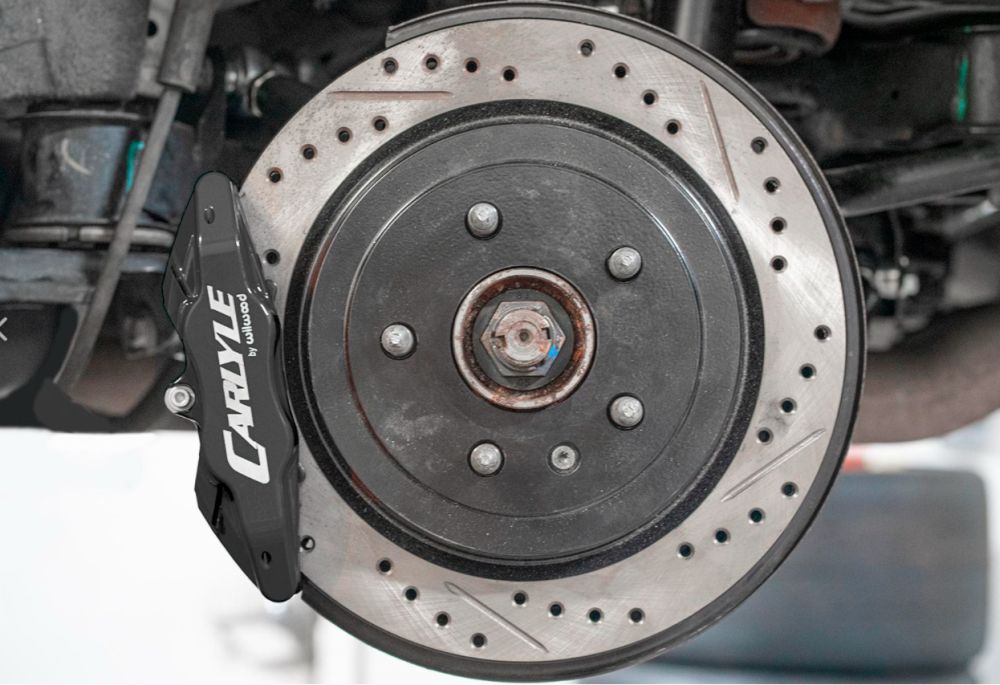

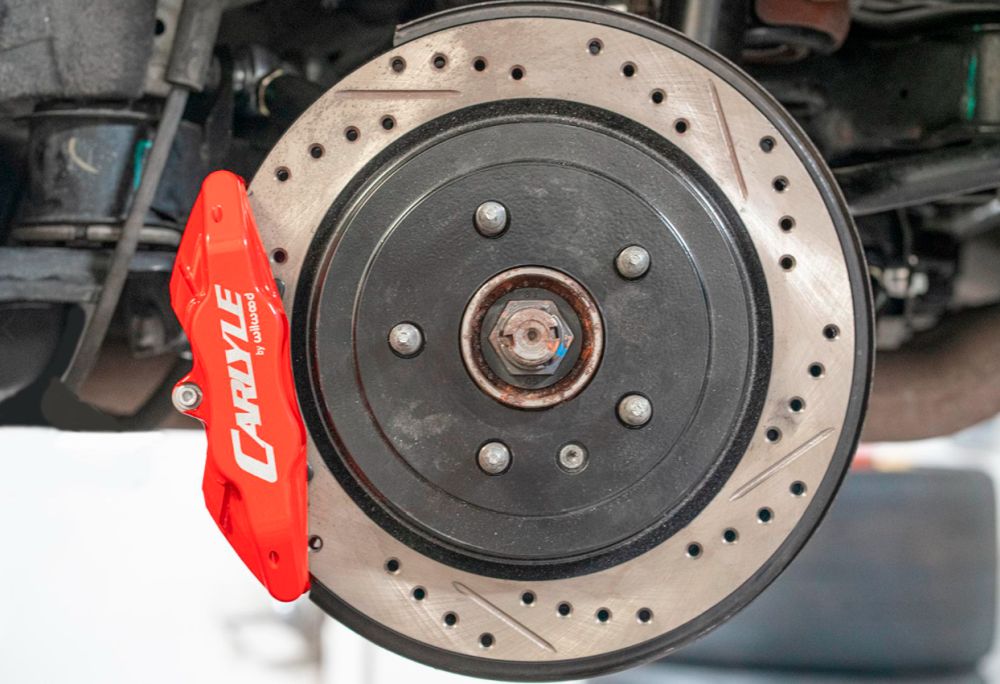

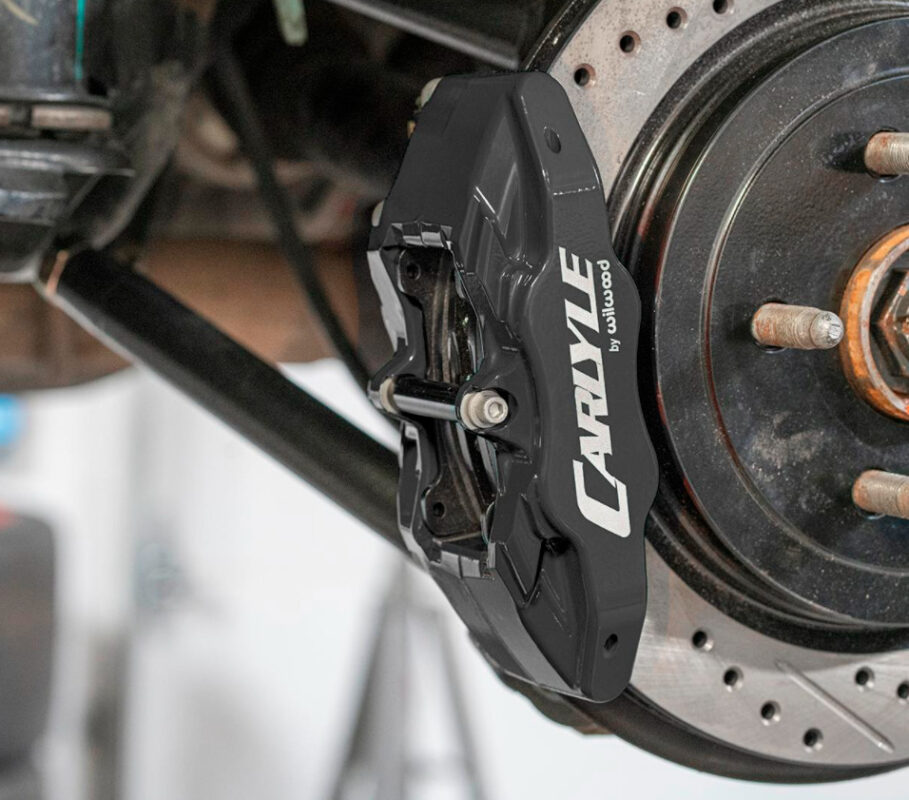

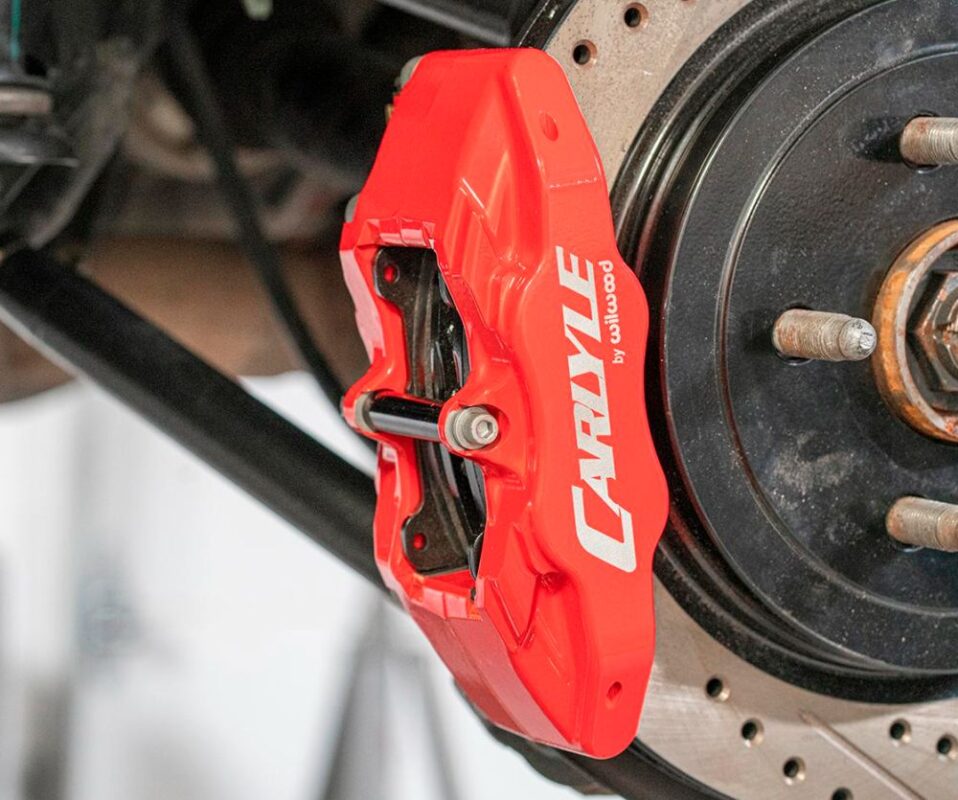

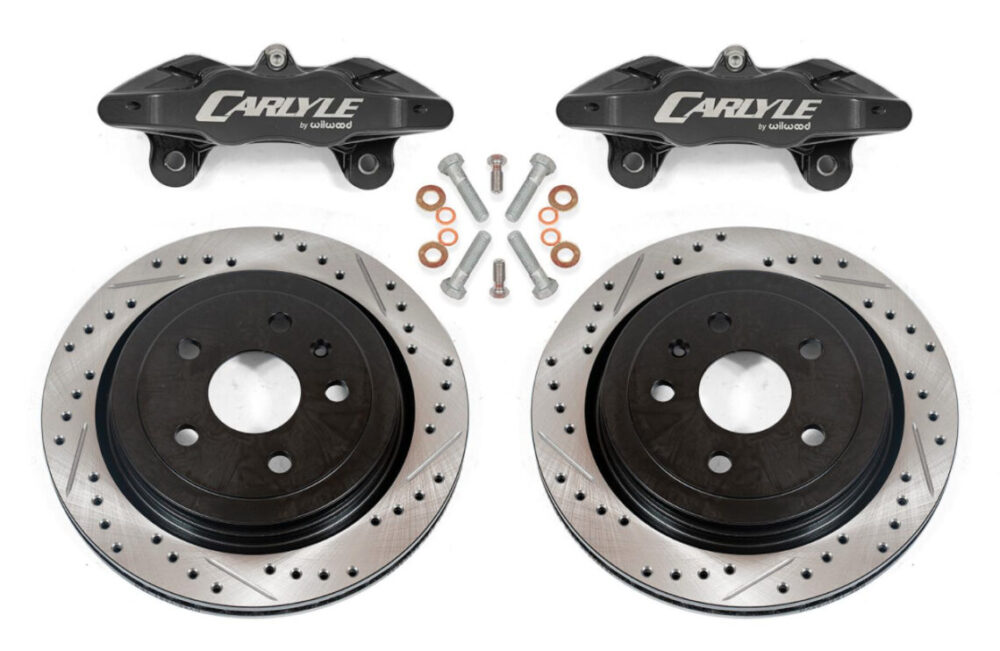

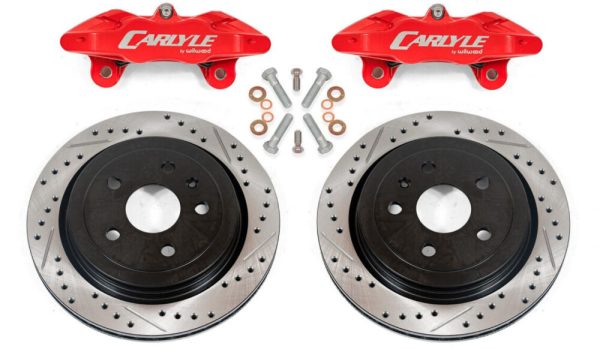

OEM ATS-V rear brakes feature 13.3” rotors and the smallest diameter wheel that will fit is 17”  This rear brakes conversion kit incorporates smaller diameter rotors and low profile calipers, and will accommodate 16 and even 15” rear wheels.  Includes two Wilwood four-piston calipers, solid brake rotors, brake pads, caliper bolts and banjo bolts.  Retains OEM emergency brake functionality.  Installation is straightforward, with only slight grinding required in one area on each brake rotor dust shield.

If you’re running stock suspension arms and the BMR/Carlyle Racing 15” rear brake conversion kit, many brands of 15” drag wheels will have clearance problems with the toe rod bolt heads.  This is not a problem if you also run the BMR/Carlyle Racing rear suspension kit, since it includes low profile, round head toe rod bolts.  If you’re not currently running the BMR/Carlyle Racing rear suspension kit, select the ‘Include special toe rod bolts’ option above.

Wilwood replacement brake pads P/N: 150-11363K

Check out the detailed installation instructions here



Applications:

2008 to 2009 Pontiac G8
2010 to 2021 Chevy Camaro
2014 to 2017 Chevy SS
2015 to 2019 Cadillac CTS-V
2016 to 2019 Cadillac ATS-V
